Description

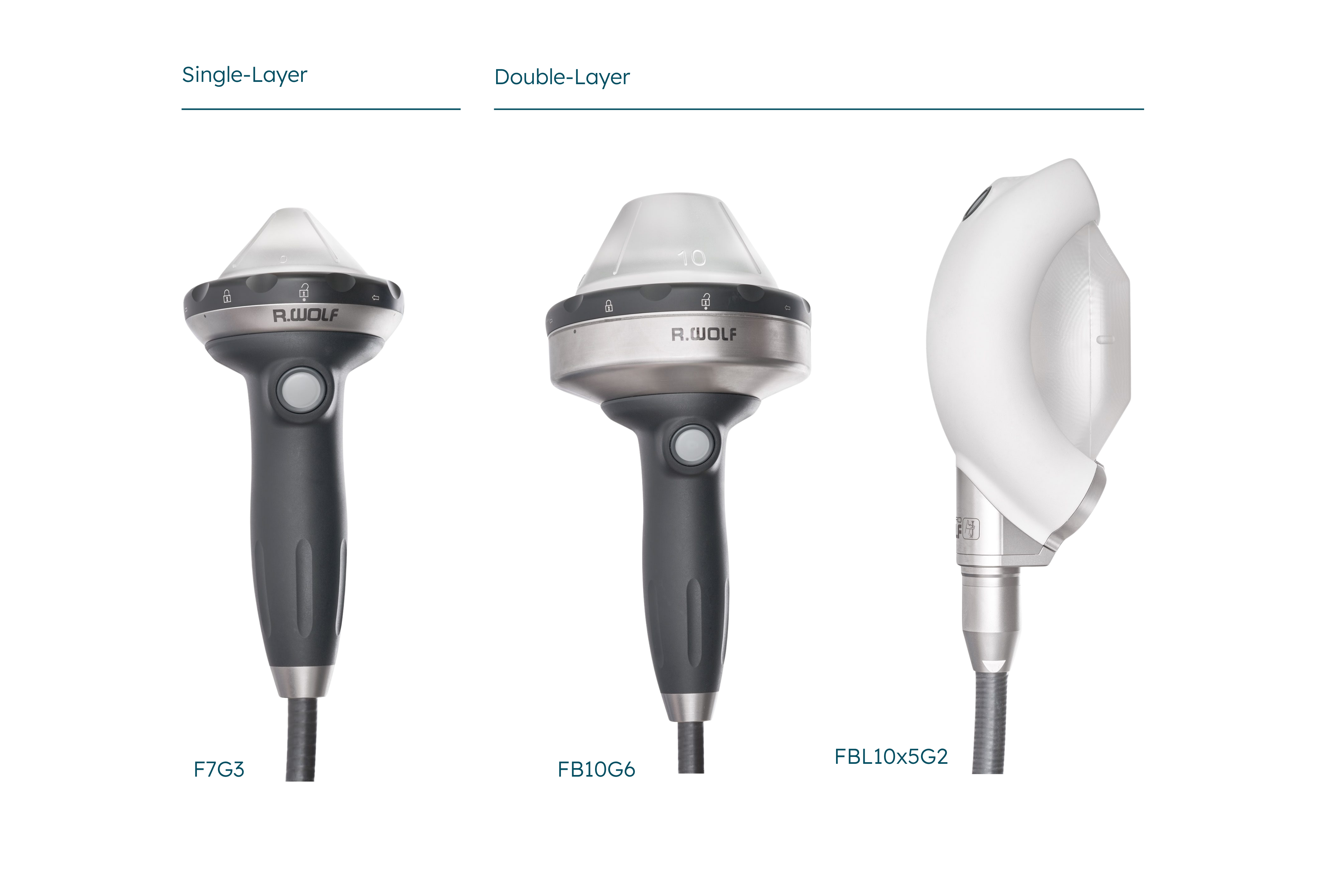

PiezoWave2T VET accommodates multiple veterinary therapy sources. The three most commonly used veterinary therapy sources are F7G3, FB10G6, and FBL10x5G2. Therapy sources are purchased individually and can be included with the initial system or added later. Source selection is based on patient population and practice caseload. All therapy sources last for at least 5 million pulses. ELvation is the only company to offer piezo therapy sources with dual-layer piezoceramic elements, such as the FB10G6 and FBL10x5G2.

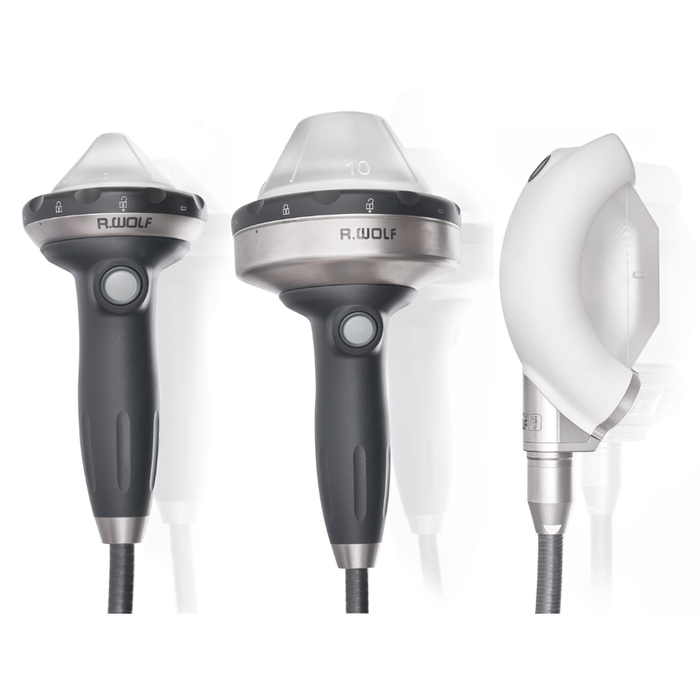

Therapy Sources

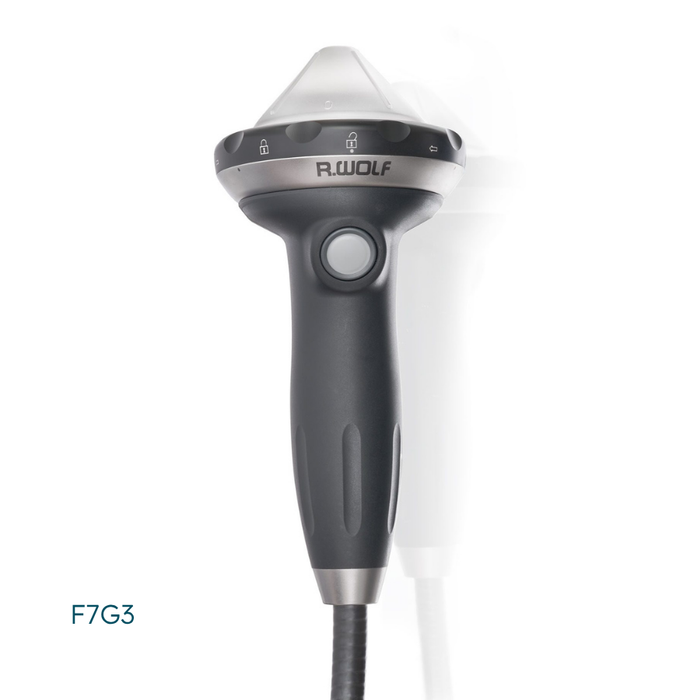

  • F7G3
    Our most compact therapy source. F7G3 is the primary therapy source for small animal treatments. It provides a compact focal zone with energy up to 0.4 mJ/mm² and seven central penetration depths from 0–30 mm. It provides sufficient depth for joints and soft tissue in canine patients of all sizes, while remaining small enough for cats and teacup-sized dogs.

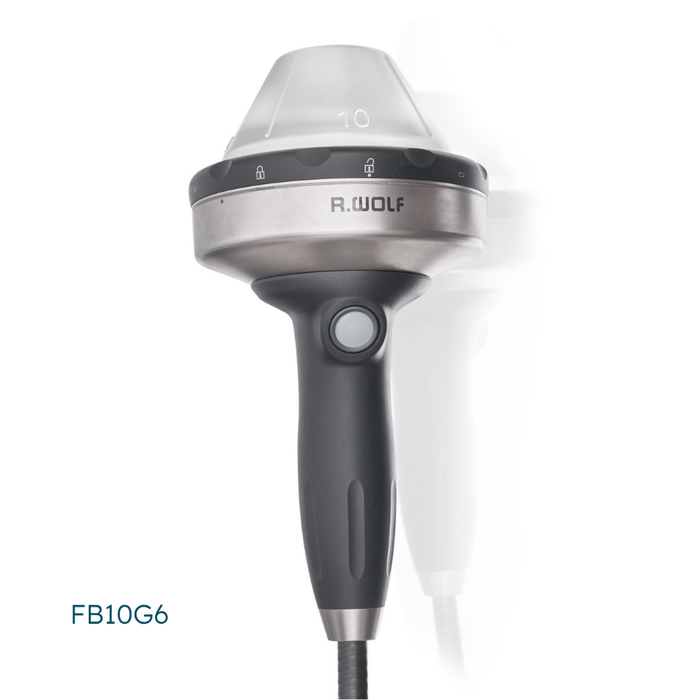

  • FB10G6
    Double-layer technology for deep reach. FB10G6 is an equine therapy source commonly used in equine sports medicine. It provides a focal zone with energy up to 0.72 mJ/mm² and seven central penetration depths up to 60 mm, supported by a double layer of piezoceramic elements. This therapy source is variable enough to treat joints, distal limb tendons and ligaments, and deeper muscle targets of the caudal cervical and sacral regions.

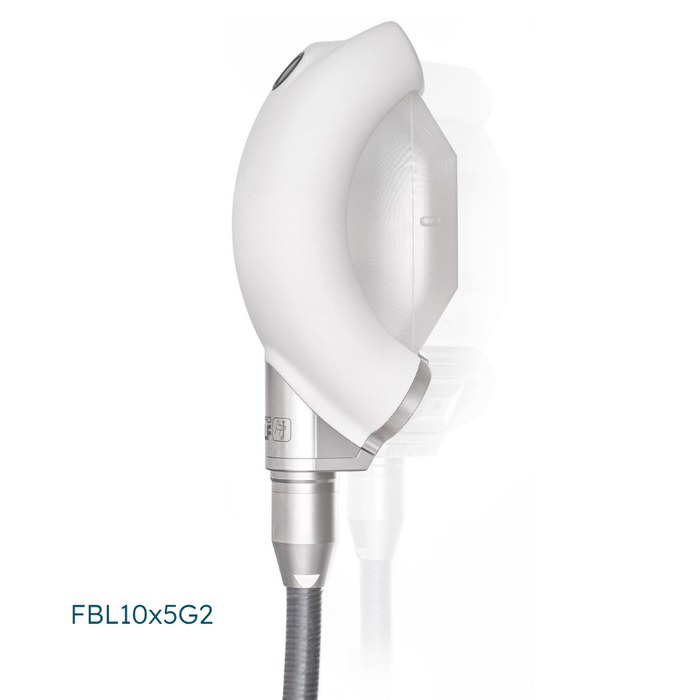

  • FBL10x5G2
    Linear focus for extended treatment area. FBL10x5G2 uses a unique geometry of double-layered piezoceramic elements to provide a 5 cm broad linear focal zone ideal for treating larger tissue volumes. It has energy up to 0.16 mJ/mm² and a maximum central penetration depth of 20 mm. In small animal care, it is commonly used for paraspinal muscles, larger muscle bodies, trigger points, and fascia. In equine care, it is often used for suspensory branches, SDFT injuries, as well as superficial muscle and fascia.
