Elvation PiezoWave2T VET Control Unit
Elvation Vet

Elvation PiezoWave2T VET Control Unit

Product Description

PiezoWave2T VET is a focused, non-invasive shockwave system that supports tissue healing, relieves pain, and gives clinicians precise control over every session. Multiple therapy sources with adjustable penetration depths from 0–172 mm and a wide energy range from 0–0.8 mJ/mm² provide treatment options for equine, small animal, farm animal, exotic, and zoo patients. Quiet, efficient, and built for the long run.

Why Choose PiezoWave2T VET?

The PiezoWave2T VET is engineered to deliver highly precise, focused energy at multiple depths with exceptional consistency and has a wide range of energy output. This level of control allows veterinarians to tailor treatments to the specific tissue and pathology. Built for long-term durability, each therapy source delivers over 5 million pulses, making PiezoWave2T VET shockwave an economical choice with low ongoing costs and dependable performance. The result is a smarter, more targeted approach to shockwave therapy that enhances clinical confidence, improves patient comfort, and drives better outcomes. The PiezoWave2T VET supports the full musculoskeletal caseload for equine and small animal practices: From sport horses and senior dogs to farm, zoo, and exotic.

Key Features & Benefits

Deep Precision: Shockwaves form inside tissue, reaching deep structures without skin discomfort.

Faster Coverage: Linear focal source treats large muscle and fascia zones efficiently.

29 Energy Levels: Precise control from gentle soft-tissue work to deep bone intensity.

Fear-Free Workflow: Ultra-quiet operation keeps patients calm; sedation is rarely needed.

Zero Maintenance Costs: 5 million pulse guarantee with no regular refurbishing required.

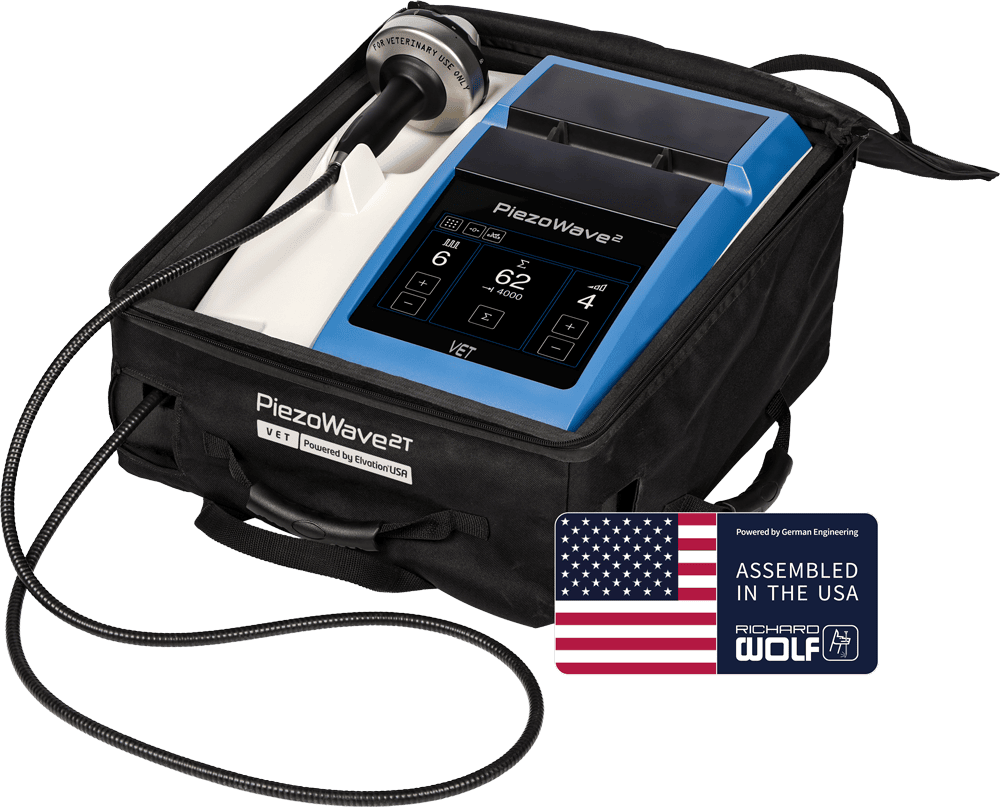

Fully Portable: 30 lbs setup in a soft travel bag—plugs into standard wall outlets.

Therapy Sources

PiezoWave2T VET accommodates multiple veterinary therapy sources. The three most commonly used veterinary therapy sources are F7G3, FB10G6, and FBL10x5G2. Therapy sources are purchased individually and can be included with the initial system or added later. Source selection is based on patient population and practice caseload. All therapy sources last for at least 5 million pulses. ELvation is the only company to offer piezo therapy sources with dual-layer piezoceramic elements, such as the FB10G6 and FBL10x5G2.

Single-Layer
F7G3 Therapy Source

F7G3

Our most compact therapy source.

F7G3 is the primary therapy source for small animal treatments. It provides a compact focal zone with energy up to 0.4 mJ/mm² and seven central penetration depths from 0–30 mm.

LEARN MORE
Double-Layer
FB10G6 Therapy Source

FB10G6

Double-layer technology for deep reach.

FB10G6 is an equine therapy source commonly used in equine sports medicine. It provides a focal zone with energy up to 0.72 mJ/mm² and seven central penetration depths up to 60 mm.

LEARN MORE

FBL10x5G2 Therapy Source

FBL10x5G2

Linear focus for extended treatment area.

FBL10x5G2 uses a unique geometry of double-layered piezoceramic elements to provide a 5 cm broad linear focal zone ideal for treating larger tissue volumes.

LEARN MORE
Elvation Gel Pad Set

Elvation Gel Pad Set

With Piezowave2T VET’s site-specific focused energy, gel pads are used to apply energy at the correct depth of targeted tissue.

It is best to use a combination of manual palpations and diagnostic imaging to determine the area of damaged tissue, the depth of penetration required to reach it, and the optimal angle of entry for the therapy source. If imaging is not possible, the correct stand-off gel pad can be chosen based on knowledge of the anatomy, and the ability of the PiezoWave2T VET to scan for and flare pain points that are identified by the patient’s bio feedback. When treating different anatomical structures in one session, it may be necessary to use multiple different gel pads.
